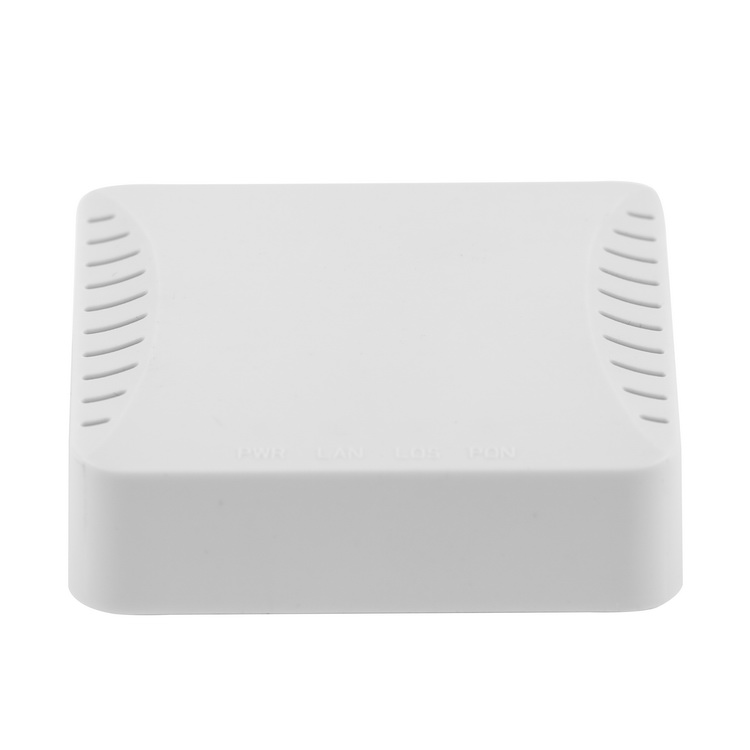

Item No.: AE801-G1-Z
The EPON SFU type optical network terminal (ONU) series provides a flexible mix of residential access services including high speed data and IPTV services compliant with the IEEE802.3ah standard. In particular, the ONUs are designed for Ethernet data services, IPTV and wireless router accessing for various application scenarios, such as residential triple-play service and business connections
Material: ABS Plastic
Size: 125mm×80mm×28mm
Weight: 130g
Ø Overview
The EPON SFU type optical network terminal (ONU) series provides a flexible mix of residential access services including high speed data and IPTV services compliant with the IEEE802.3ah standard. In particular, the ONUs are designed for Ethernet data services, IPTV and wireless router accessing for various application scenarios, such as residential triple-play service and business connections
Ø Functional
v Router mode supports PPPoE/DHCP/ static IP
v Support port-based rate limitation and bandwidth control;
v In compliant with IEEE802.3ah Standard
v Up to 20KM transmission Distance
v Support data encryption, group broadcasting, port Vlan separation, etc.
v Support Dynamic Bandwidth Allocation (DBA)
v Support ONU auto-discovery/Link detection/remote upgrade of software;
v Support VLAN division and user separation to avoid broadcast storm;
v Support power-off alarm function ,easy for link problem detection
v Support broadcasting storm resistance function
v Support ACL and SNMP to configure data packet filter flexibly
v Specialized design for system breakdown prevention to maintain stable system
v Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
Ø Specification
Item | Parameter |
Technical item | 1GE |

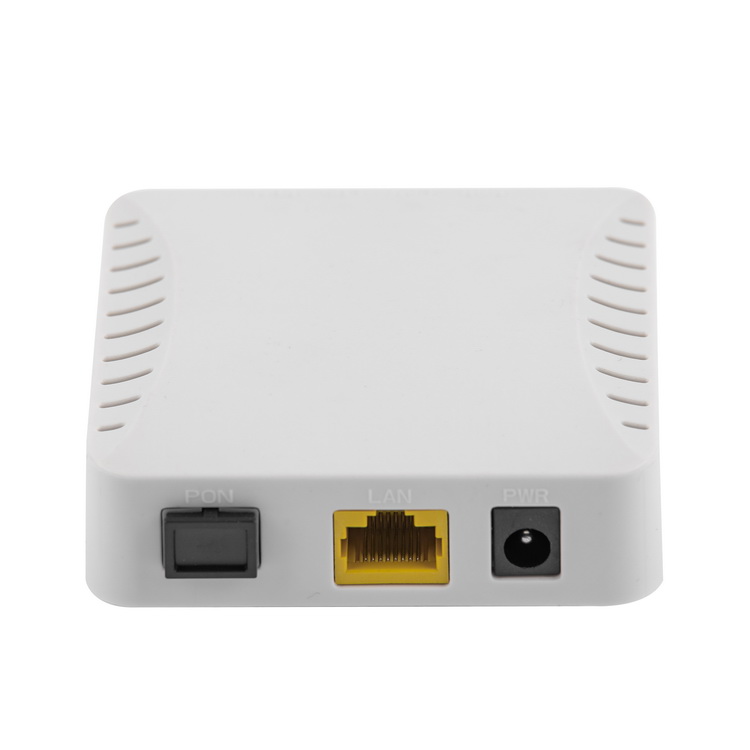

PON Interface | 1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric1.25Gbpsupstream/downstream SC single-mode fiber split ratio:1:64 Transmission distance 20KM |
User Ethernet Interface | 1*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
Power Interface | 12V DC Power supply |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125 single-mode fiber |
Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/ s; Upstream 1.244Gbit/s Ethernet: 1000Mbpss Packet Loss Ratio: <1*10E-12 latency: <1.5ms |
Gateway | Router mode supports PPPoE/DHCP/ static IP WAN support Route rand Bridge mode WAN support Internet,VoIP,IPTV,TR069 LAN supports DHCP and static IP Support NAT and NAPT Support UPnP |
Physical Specifications | Item Dimension：125mm(L)*80mm(W)*28mm(H) Item Net Weight：about 130g |
Environmental Specifications | Operating temperature: 0 to 40ºC Operating humidity: 10% to 90%(Non-condensing) |
Ø Network Application
Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
Typical Business：INTERNET、IPTV、IP Camera
Application Diagram
